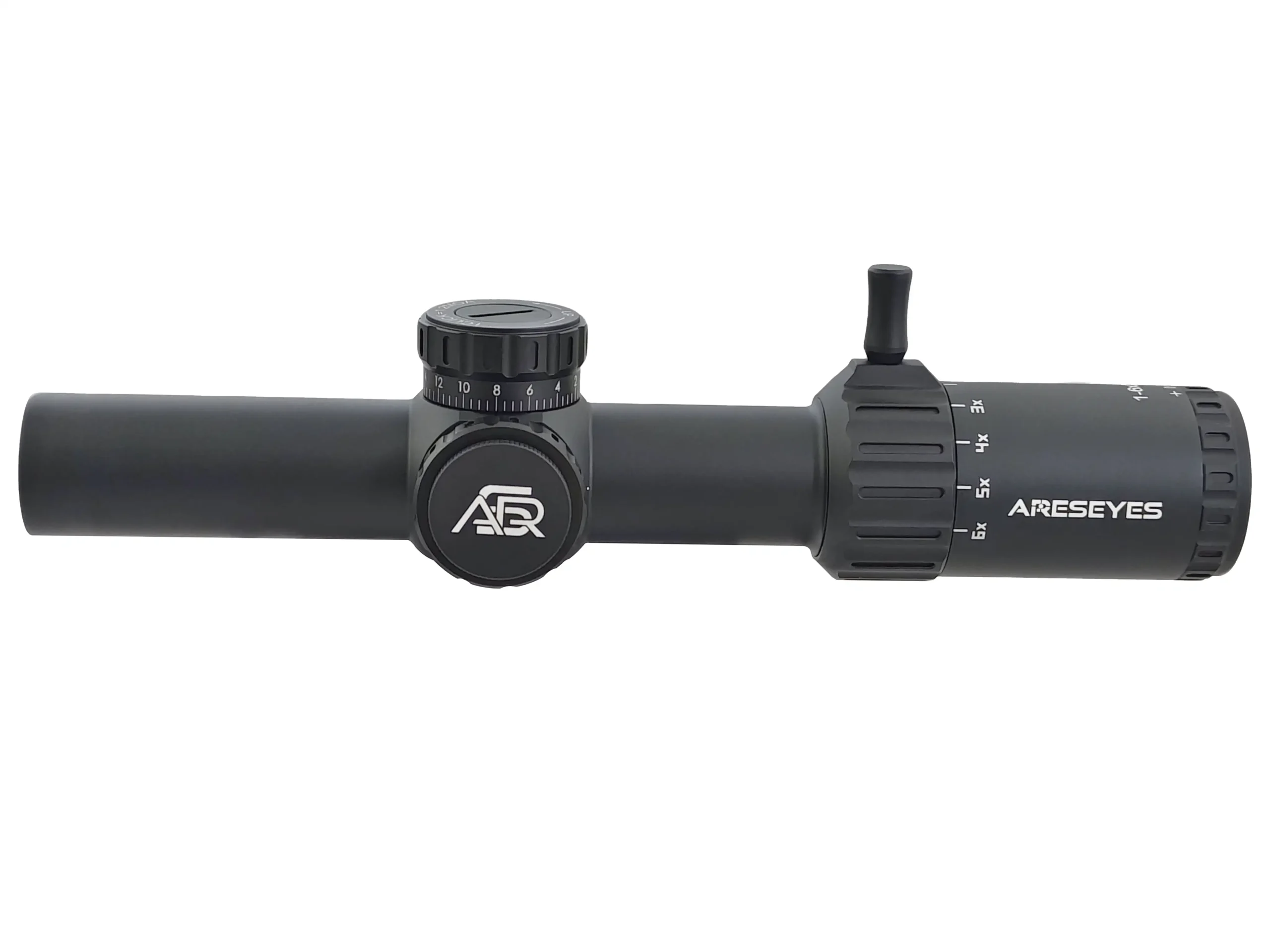

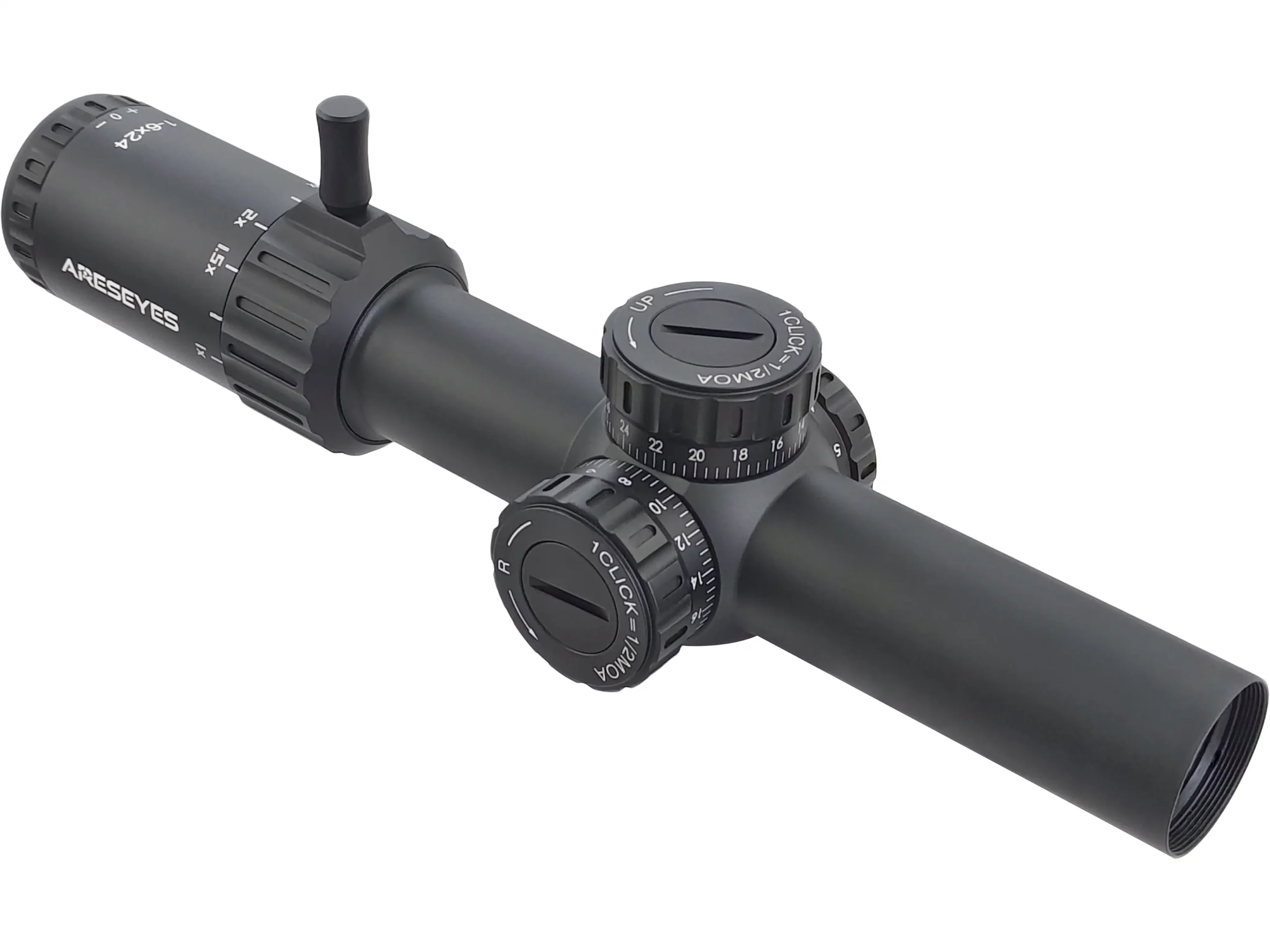

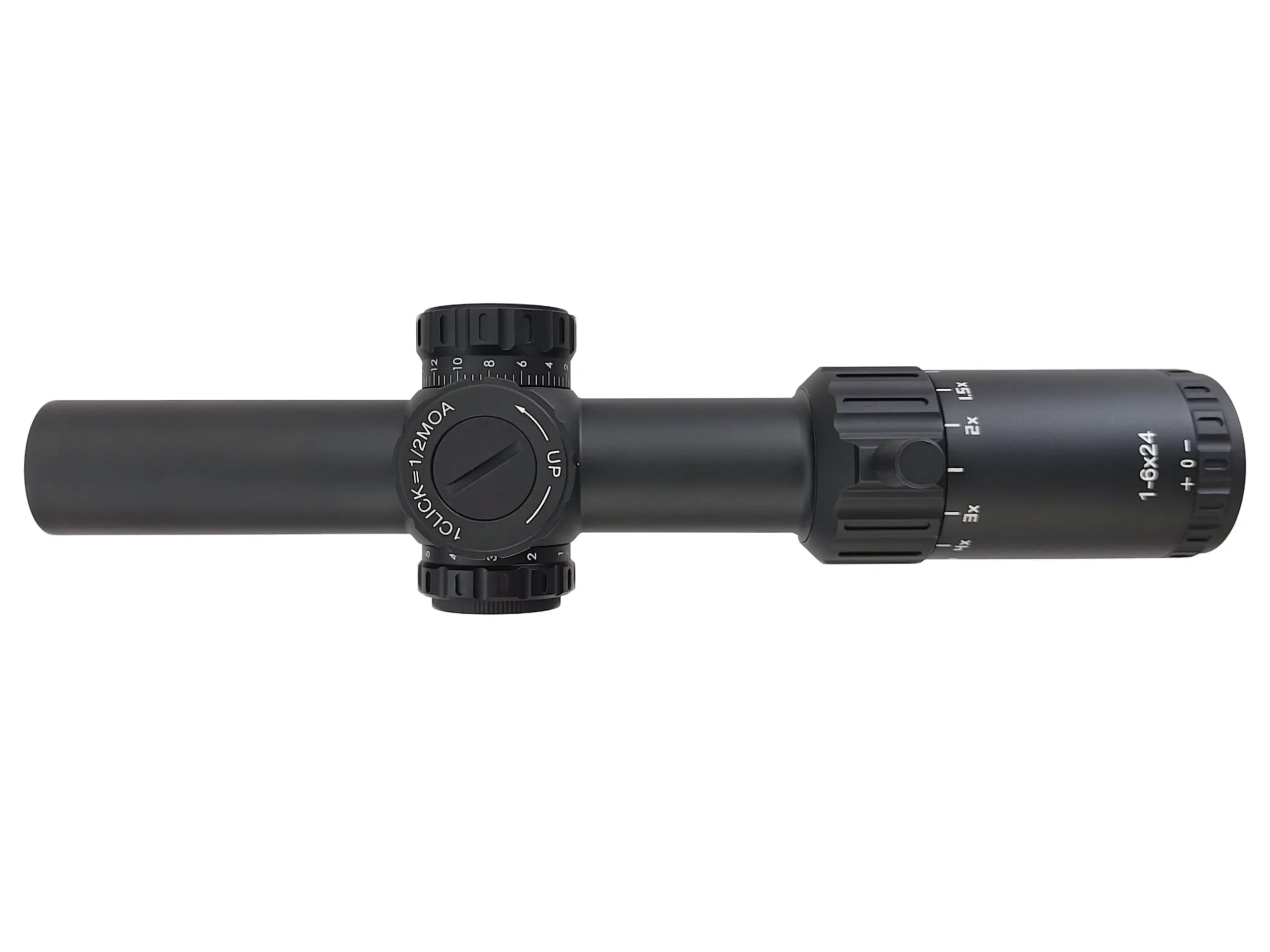

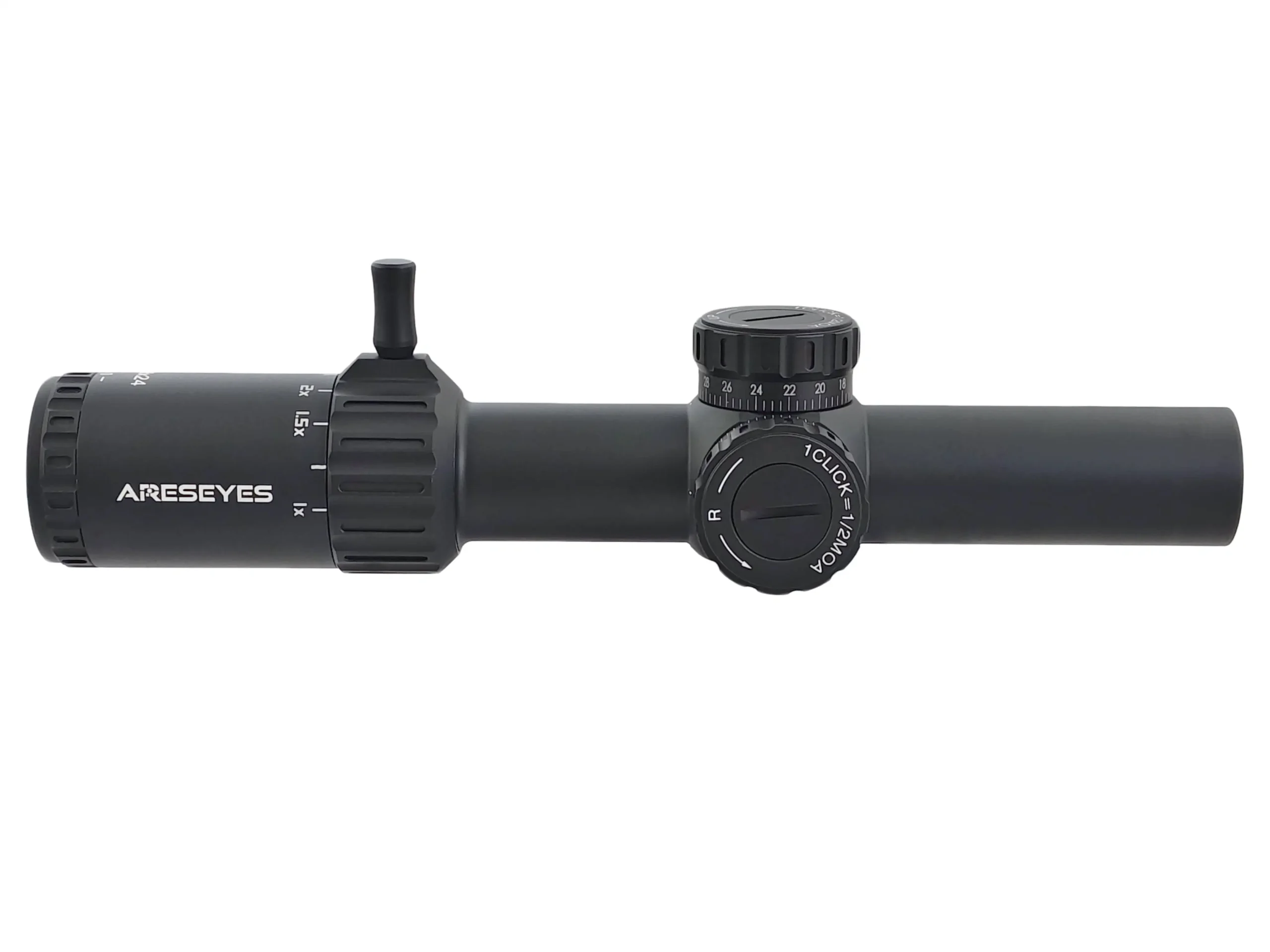

SEA HARRIER 1-6x24i
Apple Shopping Event
Hurry and get discounts up to 20% Read more
Shipping and returns
Authorities in our business will tell in no uncertain terms that Lorem Ipsum is that huge, huge no no to forswear forever. Not so fast, I'd say, there are some redeeming factors in favor of greeking text, as its use is merely the symptom of a worse problem to take into consideration.
Product care
Anyway, you still use Lorem Ipsum and rightly so, as it will always have a place in the web workers toolbox, as things happen, not always the way you like it, not always in the preferred order.
| Second Focal Plane |
| HD Lens |

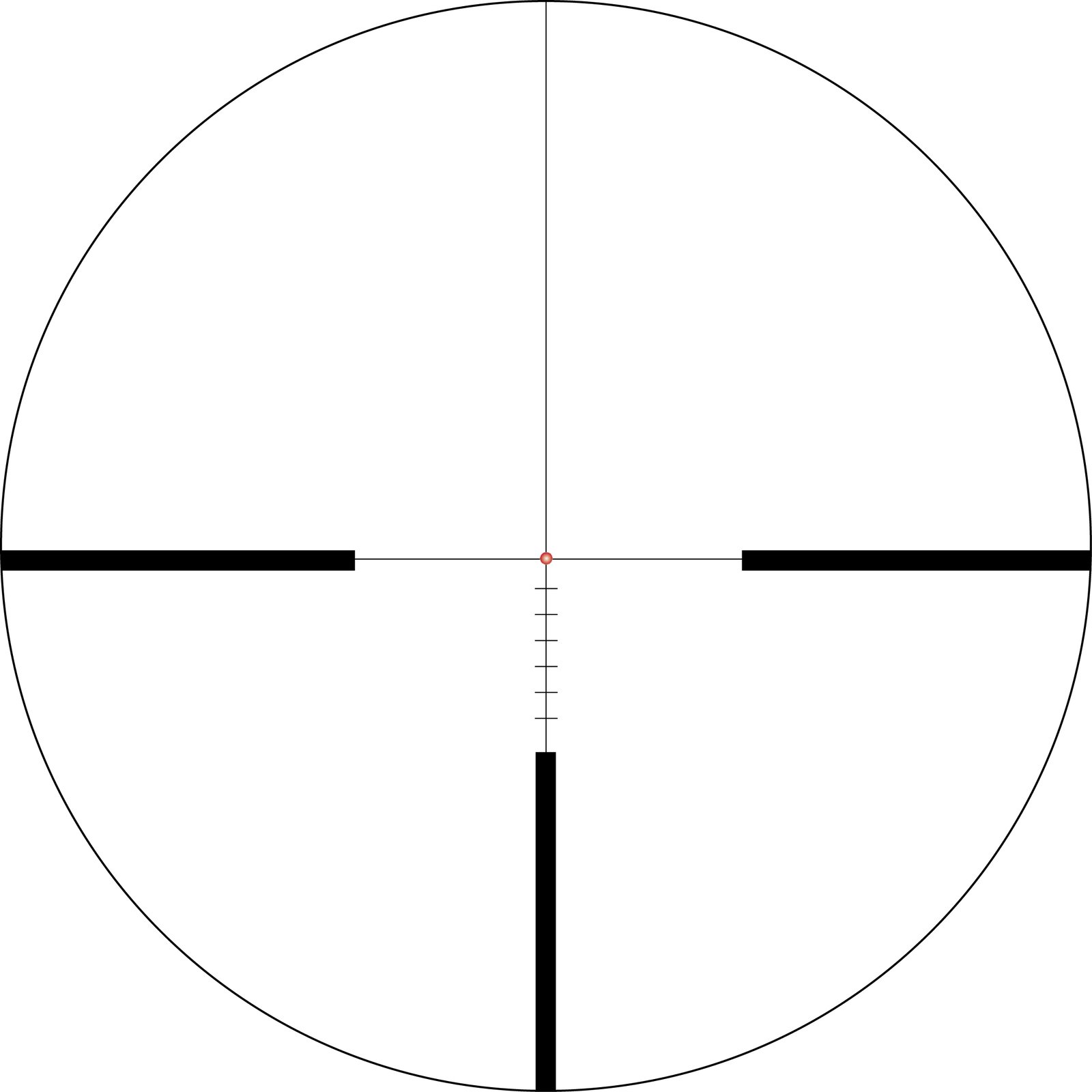

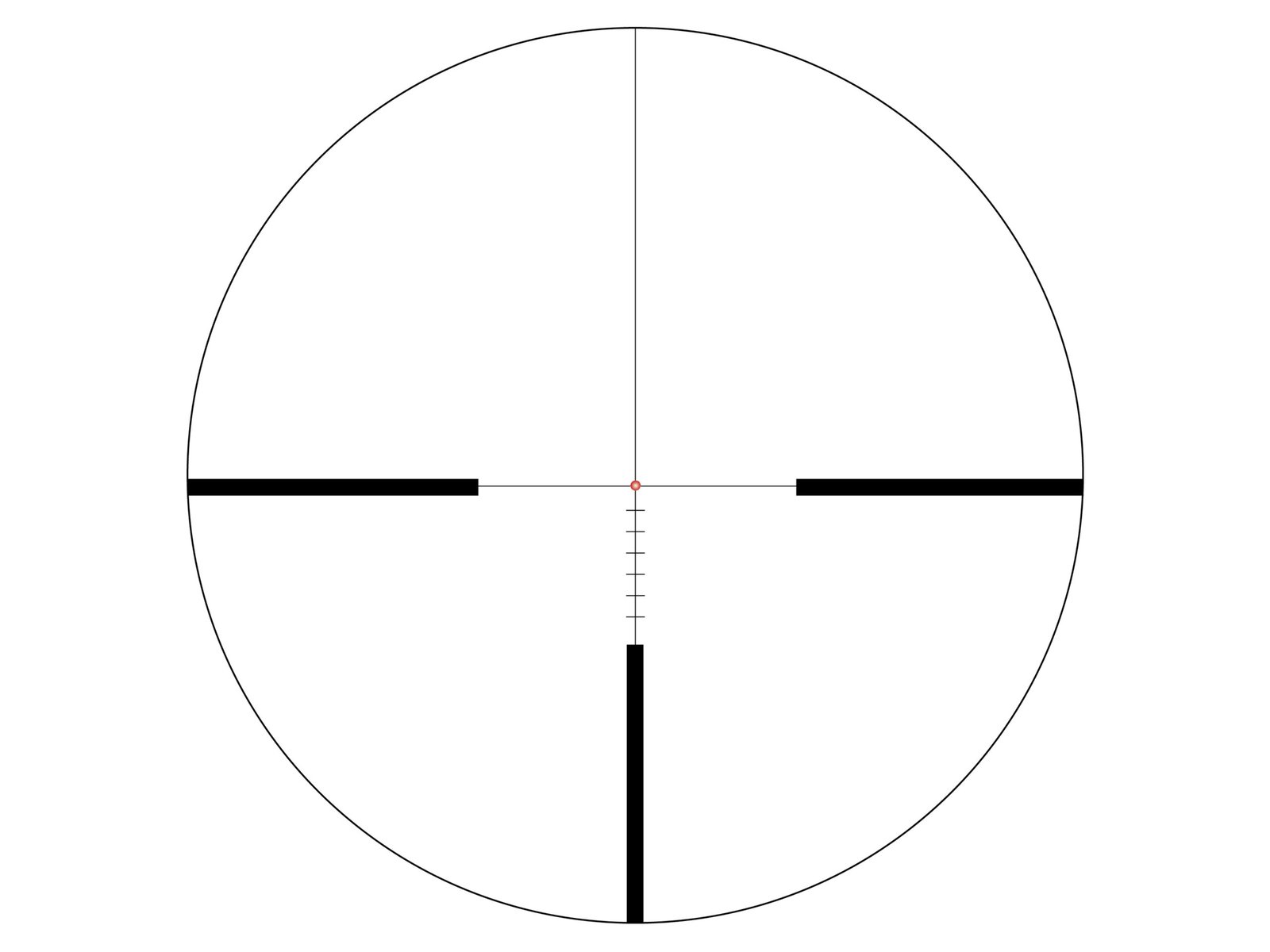

| Fiber Reticle |
| 800G Shockproof |
| IPX7 Waterproof |
| Model | 1-6×24 |
| Magnification Low | 1 |
| Magnification High | 6 |
| Objective diameter | 24 |
| Maintube diameter | 30 |
| Eyepiece Field of view | 20 |
| Diopter range +/- | 2 |
| Exit Pupil Distance (mm) | 96 |
| Total travel elevation (@ 100 yds) (MOA) | 100 |
| Total travel windage (@ 100 yds) (MOA) | 100 |
| Parallax Compensation | 100yds |
| Parallax Compensation | No |
| Fast focus eyepiece | yes |
| Sealing gas used | Nitrogen |
| Clear aperture min magnification (mm) | 16.2 |
| Clear aperture max magnification (mm) | 25 |
| Eff. exit pupil diameter @ min. magnification ± 3 % | 16.2 |
| Eff. exit pupil diameter @ max. magnification ± 3 % | 4.2 |
| Maximum resolution in Arc. Second (min. Magnification) | 11 |
| Maximum resolution in Arc. Second (max. Magnification) | 7 |
| Range of Function temperature (Unit can still be operated) | -25°C/+55°C |
| Storage temperature | -40°C/+85°C |
| Range of Dioptric compensation +/- dpt | 2 |
| Permissible backlash Dioptric Compensation | <0.25dpt |
| objective field of view @ min magnification (ft @100yds) | 109.2 |
| objective field of view @ max magnification (ft@100yds) | 18.2 |
| Change of impact point after change of magnification (MOA) | 1.5 |
| Parallax of Reticle (minute) | ＜3′ |
| Centering Reticle, full Field of View | ± 7 % |
| Straightening of the Reticle | ± 2 ° |
| trackout | <2′ |
| Changing Line of Sight by switching Magnification from min. to max. | < 1.5 ‘ |
| MOA per revolution tolerance | ±0.75′ |
| Coating | FMC |
| curvature of field of view | <1 dpt |
| distortion @ min / max magnification | <4% |
| straylight / Glare | < 2 % |

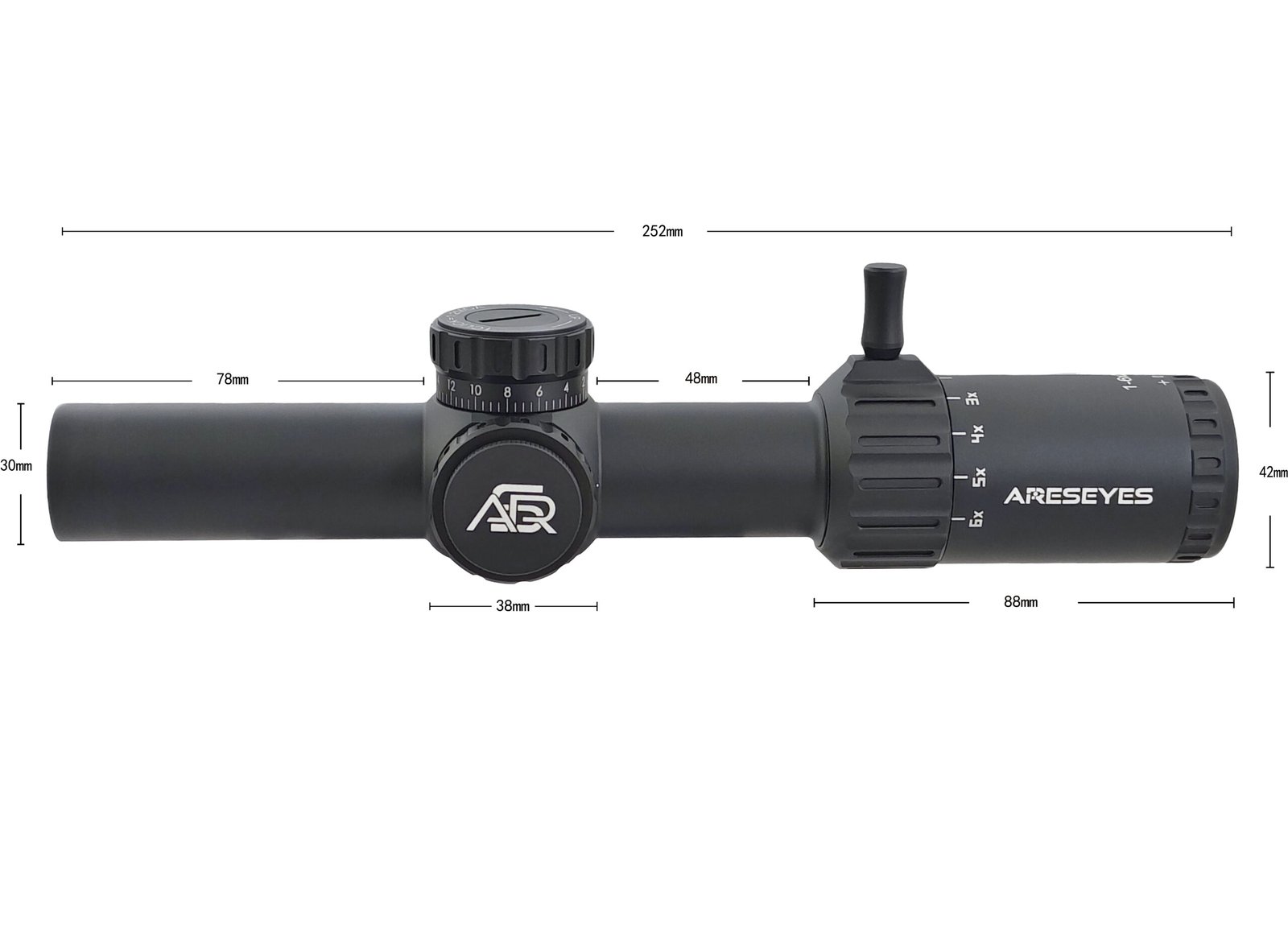

| Optical length at infinity and zero diopter (mm) | 288 |
5 year warranty does not cover loss, theft, deliberate damage, or cosmetic damage that does not hinder the performance of the product.
