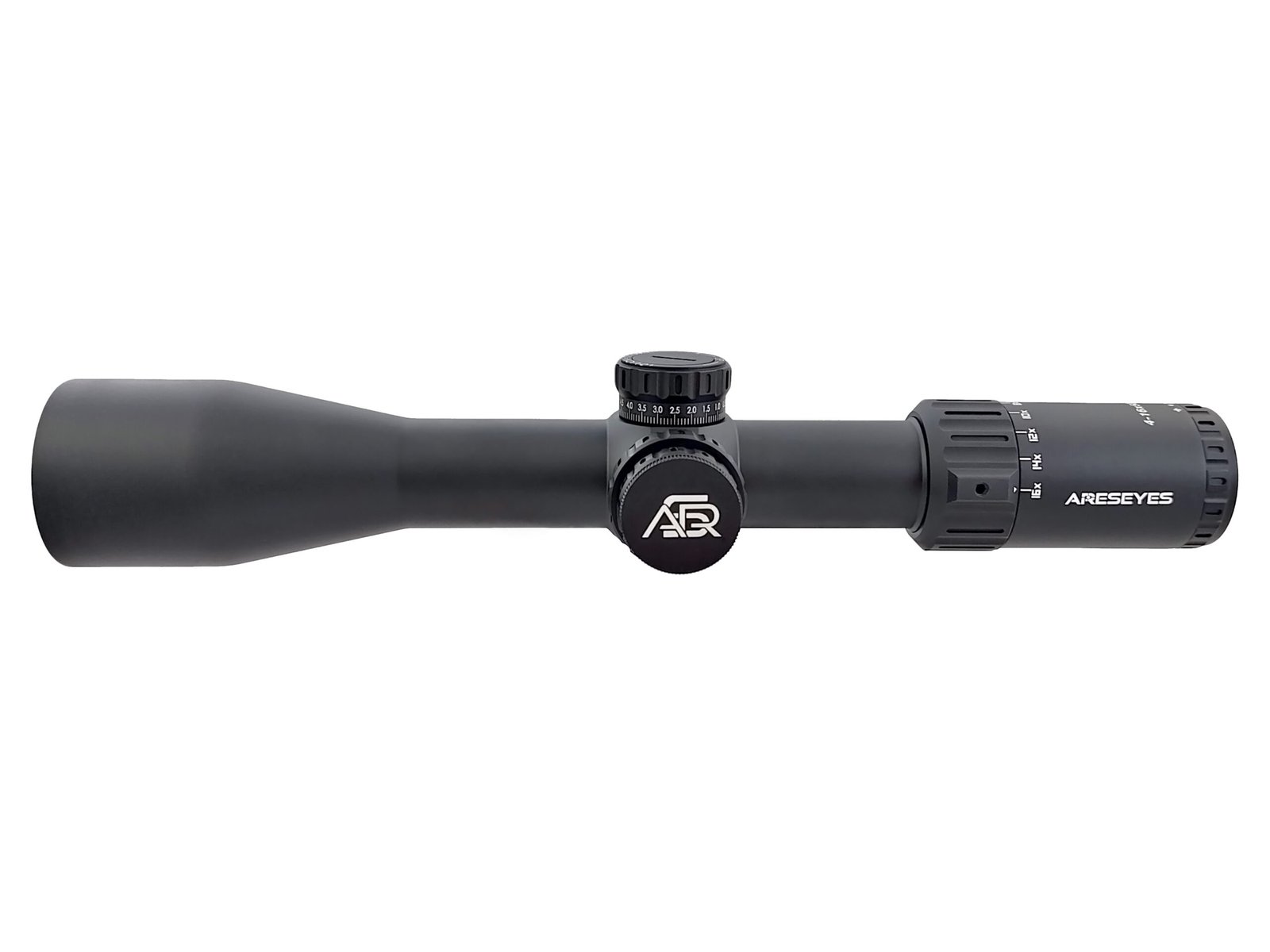

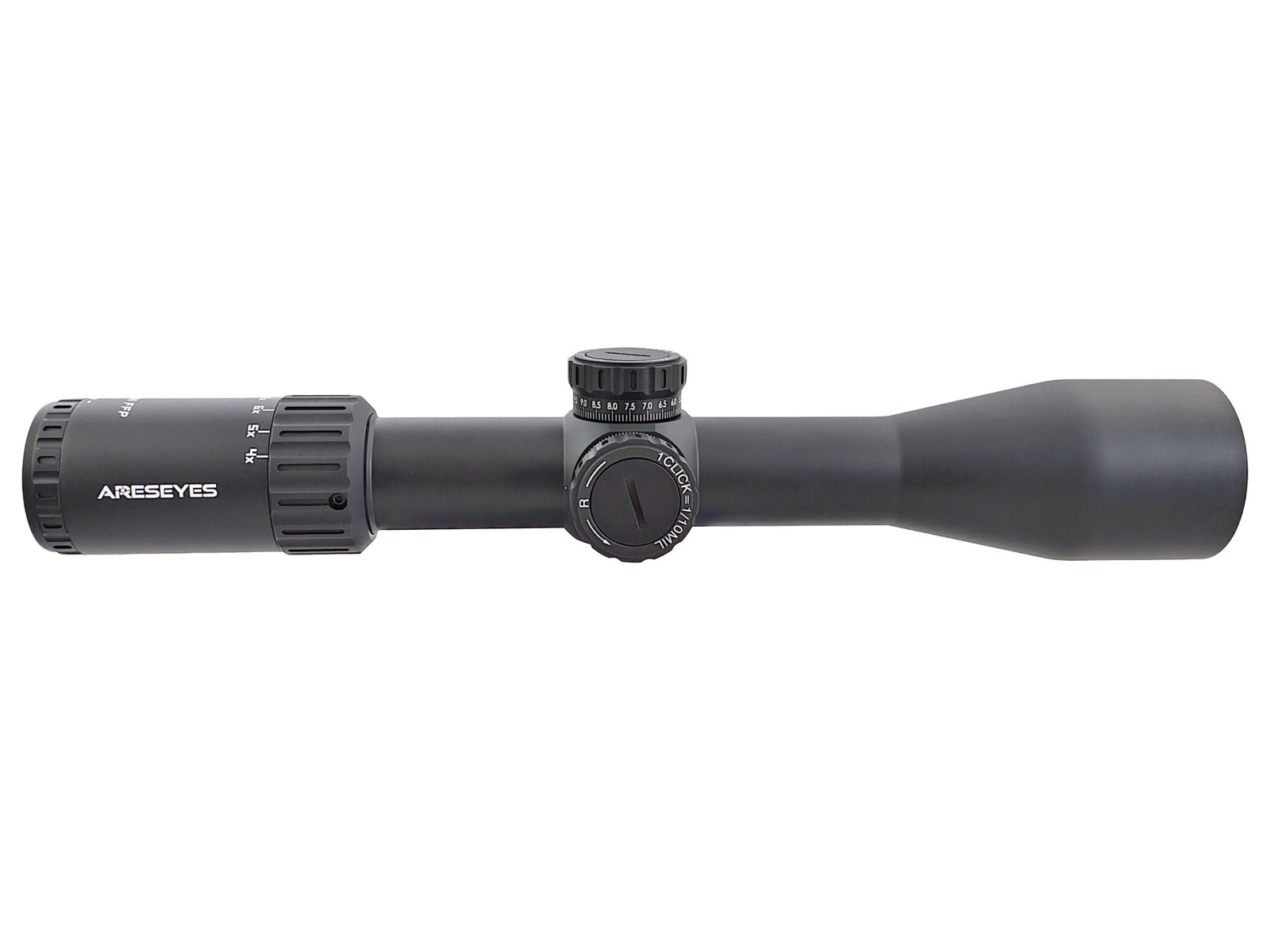

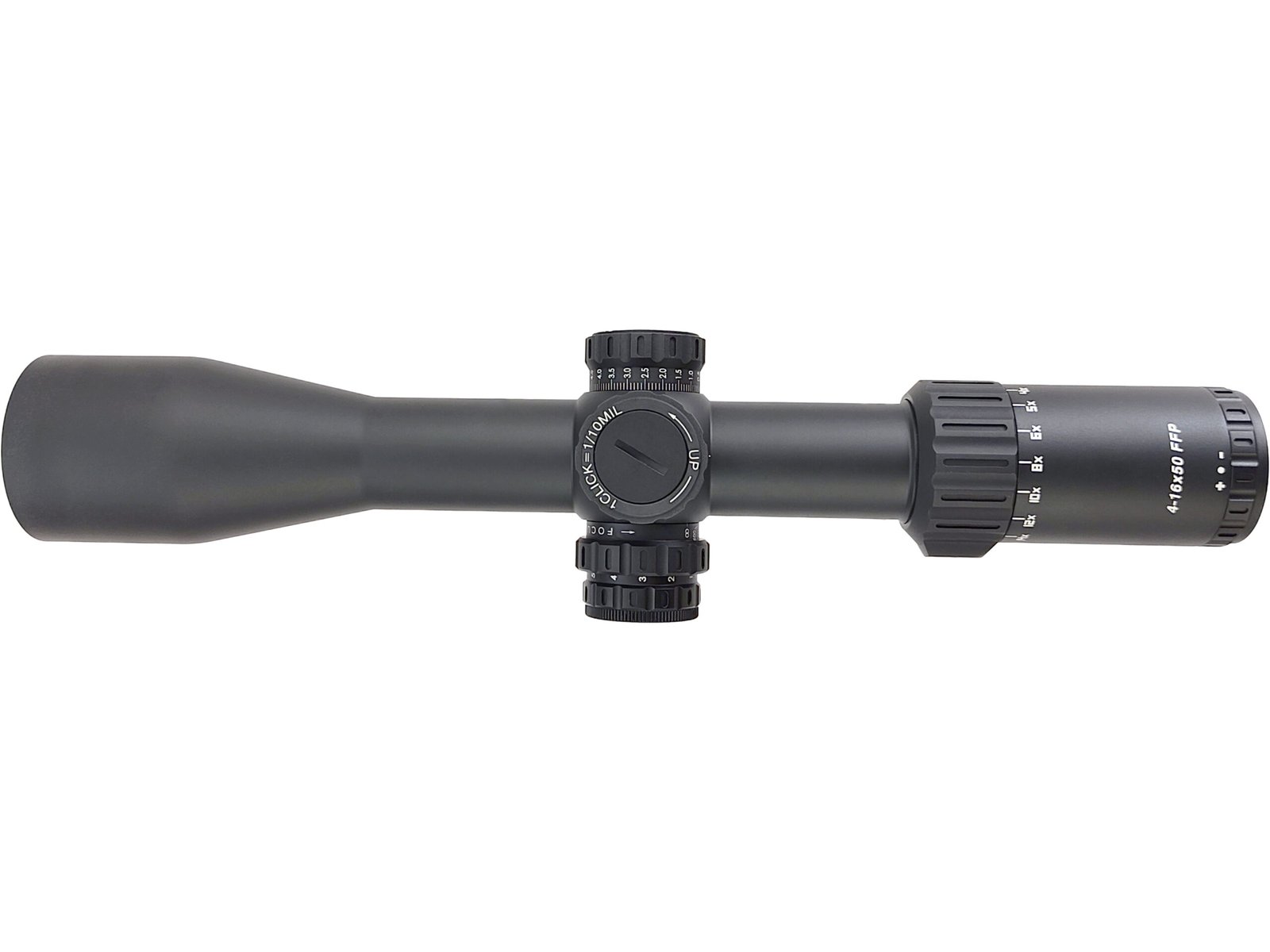

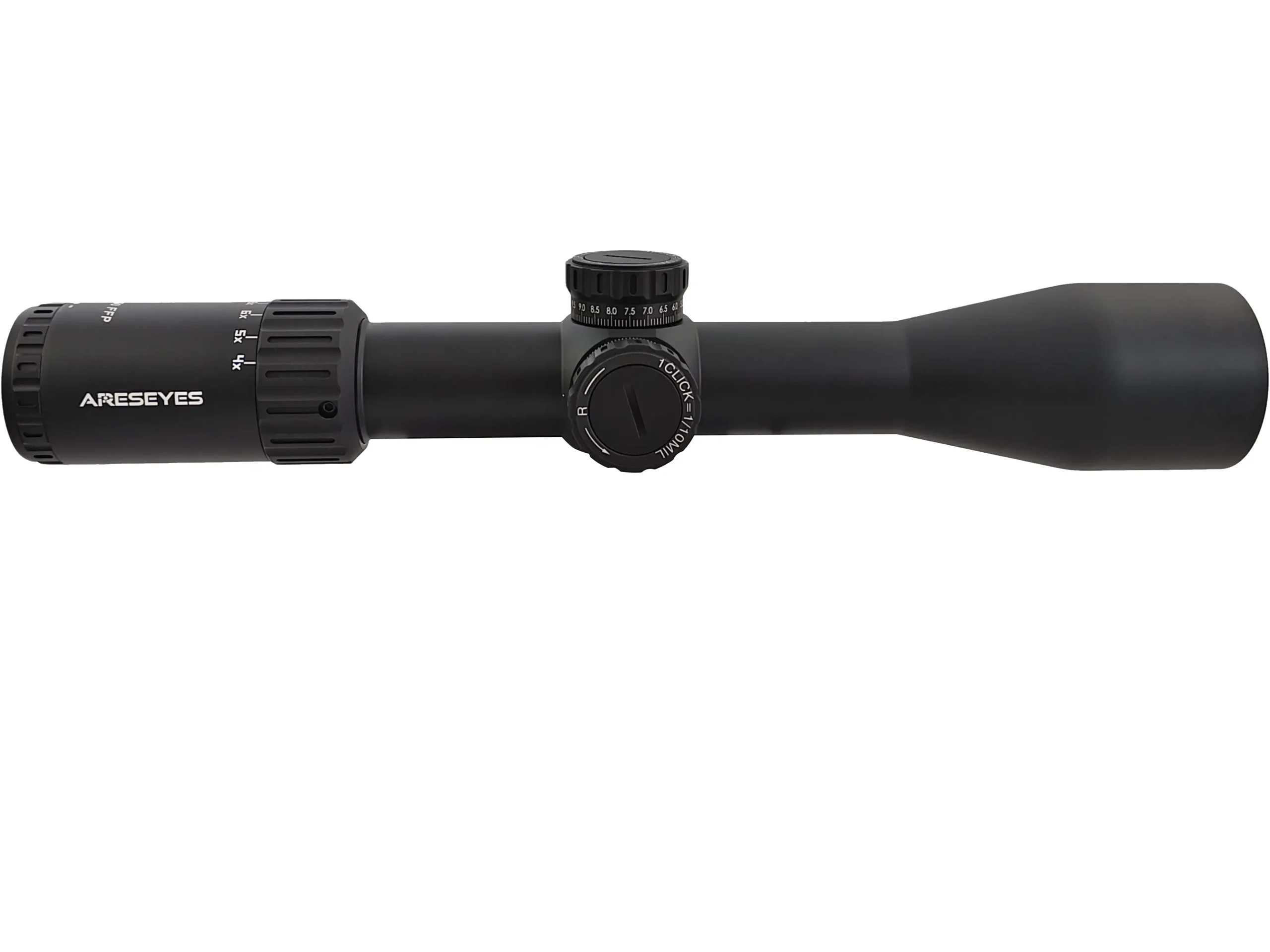

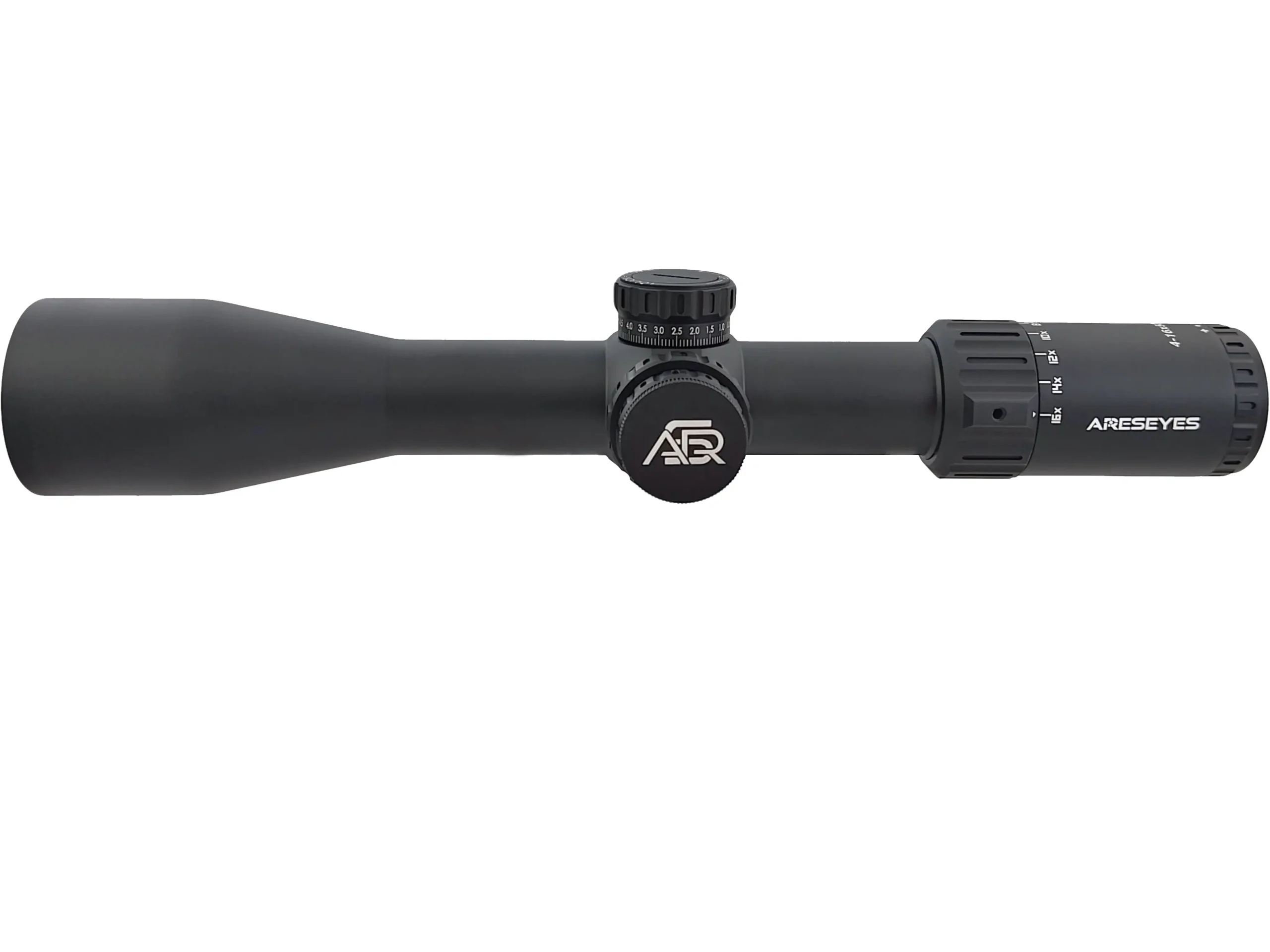

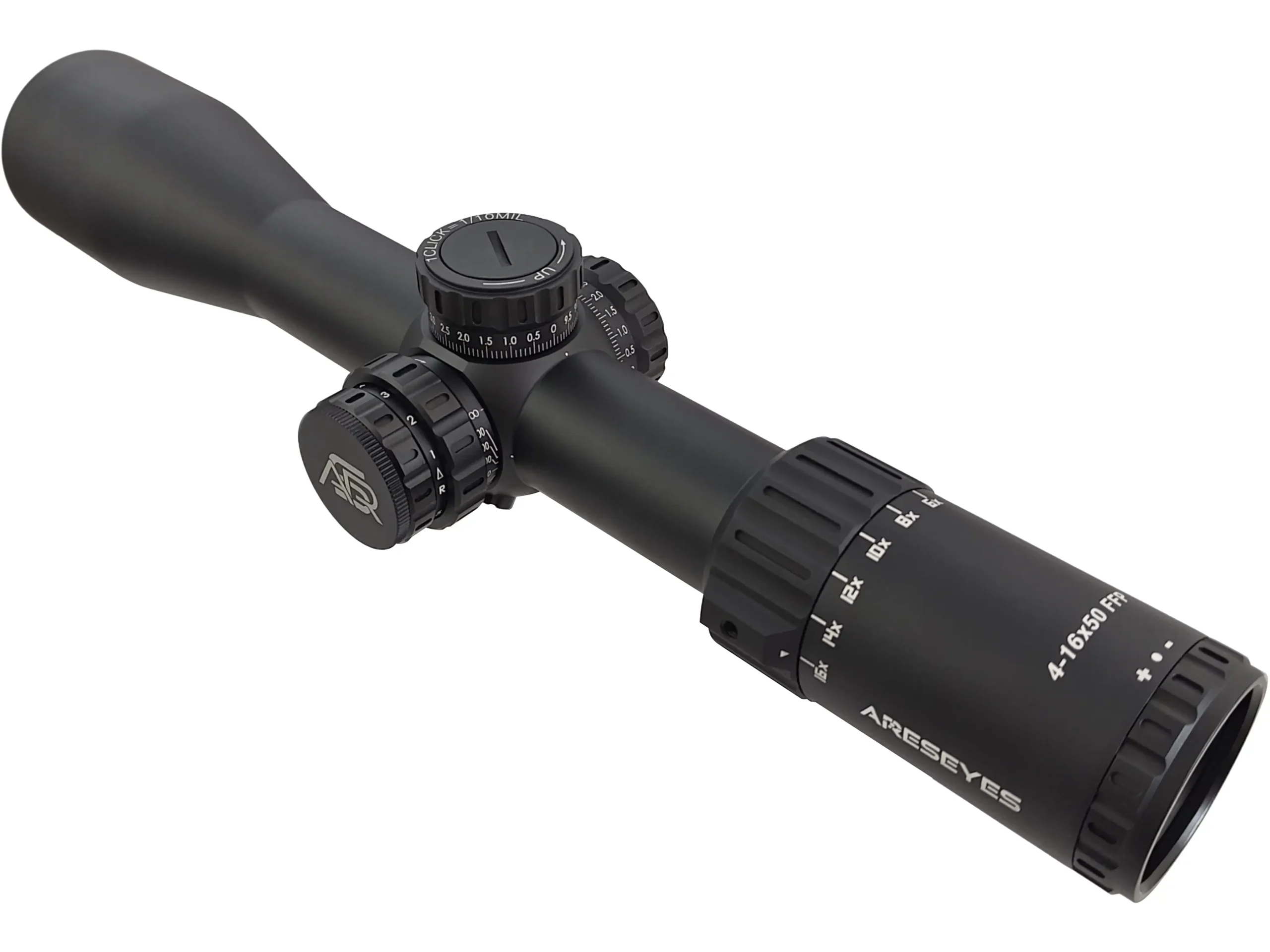

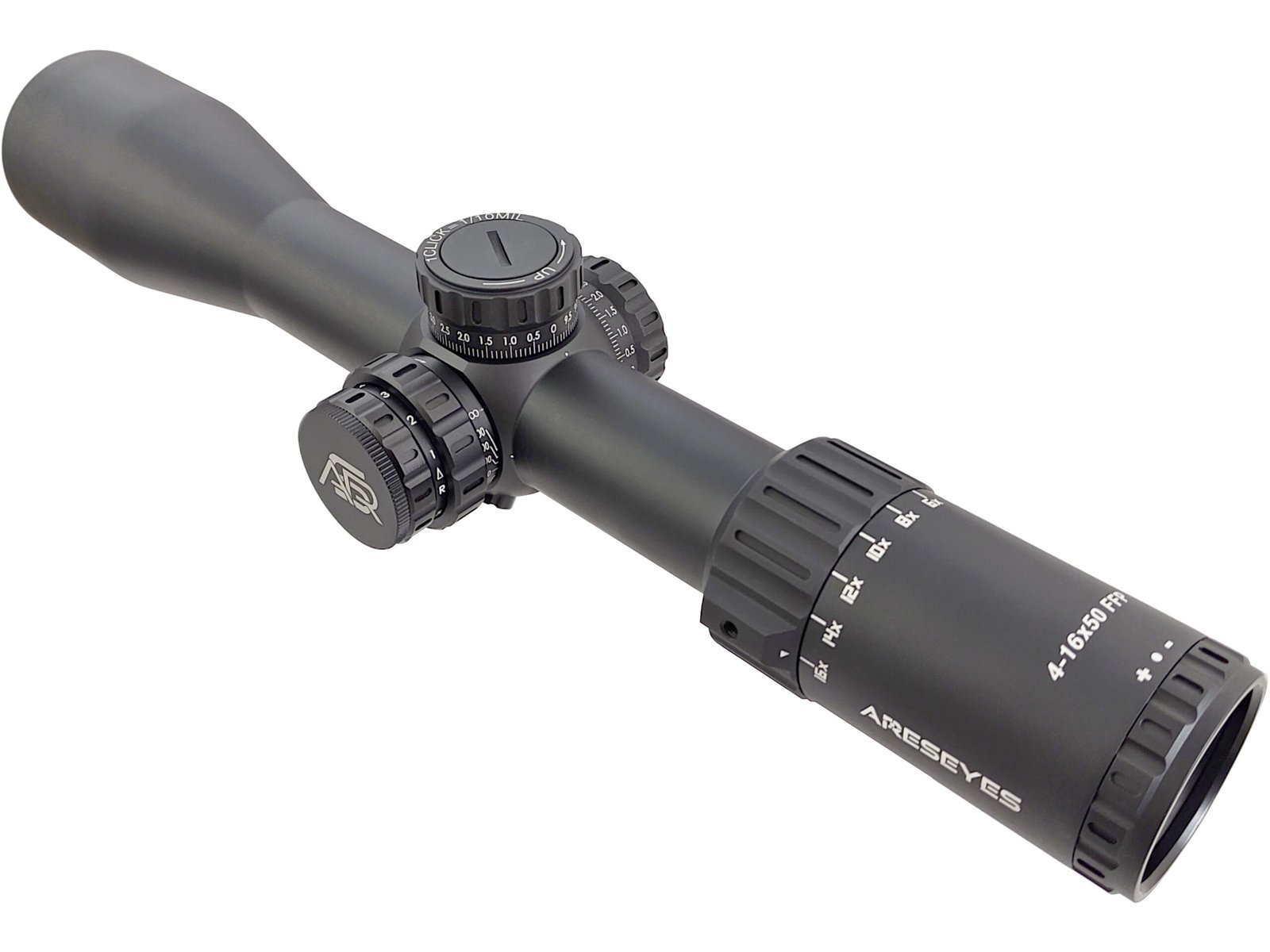

SEA HARRIER 4-16x50SFIR FFP

SKU: SHR41650FFP

Apple Shopping Event

Hurry and get discounts up to 20% Read more

Shipping and returns

Authorities in our business will tell in no uncertain terms that Lorem Ipsum is that huge, huge no no to forswear forever. Not so fast, I'd say, there are some redeeming factors in favor of greeking text, as its use is merely the symptom of a worse problem to take into consideration.

Product care

Anyway, you still use Lorem Ipsum and rightly so, as it will always have a place in the web workers toolbox, as things happen, not always the way you like it, not always in the preferred order.

First Focal Plane
34mm Tube Diameter
FMC Lens
Zero Reset turret
800G shockproof
IPX7 waterproof
Model 4-16×50
Magnification Low 4
Magnification High 16
Objective diameter 50
Eyepiece Field of view 20
Diopter range +/- 2
Exit Pupil Distance (mm) 96
Standard Klick value for E/W  (MOA) 0.25
Total travel elevation (@ 100 yds) ≥ 45M0OA
Total travel windage (@ 100 yds) ≥ 45M0OA
Parallax Compensation 25yds-∞
Parallax Compensation Type Side focus
Fast focus eyepiece yes
Sealing gas used Nitrogen
Clear aperture min magnification (mm) 50
Clear aperture max magnification (mm) 50
Eff. exit pupil diameter @  min. magnification ± 3 % 12.5
Eff. exit pupil diameter @  max. magnification ± 3 % 3.13
Maximum resolution in Arc. Second (min. Magnification) 4
Maximum resolution in Arc. Second (max. Magnification) 4
Range of Function temperature (Unit can still be operated) -25°C/+55°C
Storage temperature -40°C/+85°C
Shockproof 800G
Waterproof IPX7
Range of Dioptric compensation +/- dpt 2
Permissible backlash Dioptric Compensation <0.25dpt
objective field of view @ min magnification (ft @100yds) 27.3
objective field of view @ max magnification (ft@100yds) 6.8
Change of impact point after change of magnification (MOA) 1

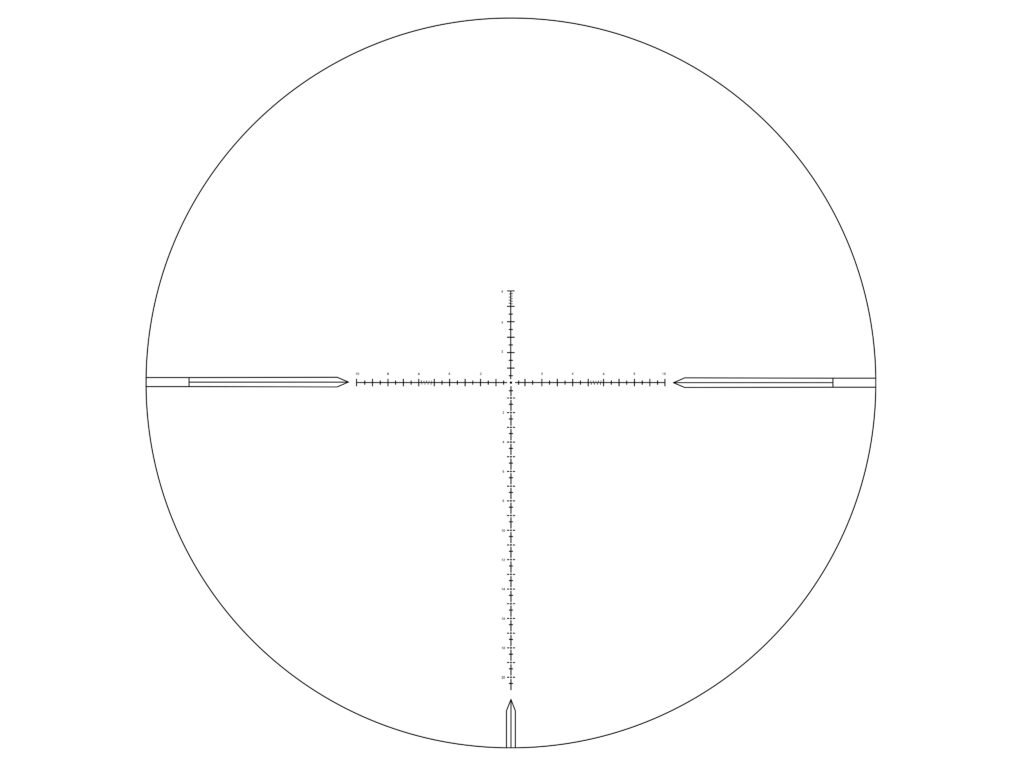

Straightening  of the Reticle ± 2 °
Coating FMC
Optical length at infinity and zero diopter (mm) 313

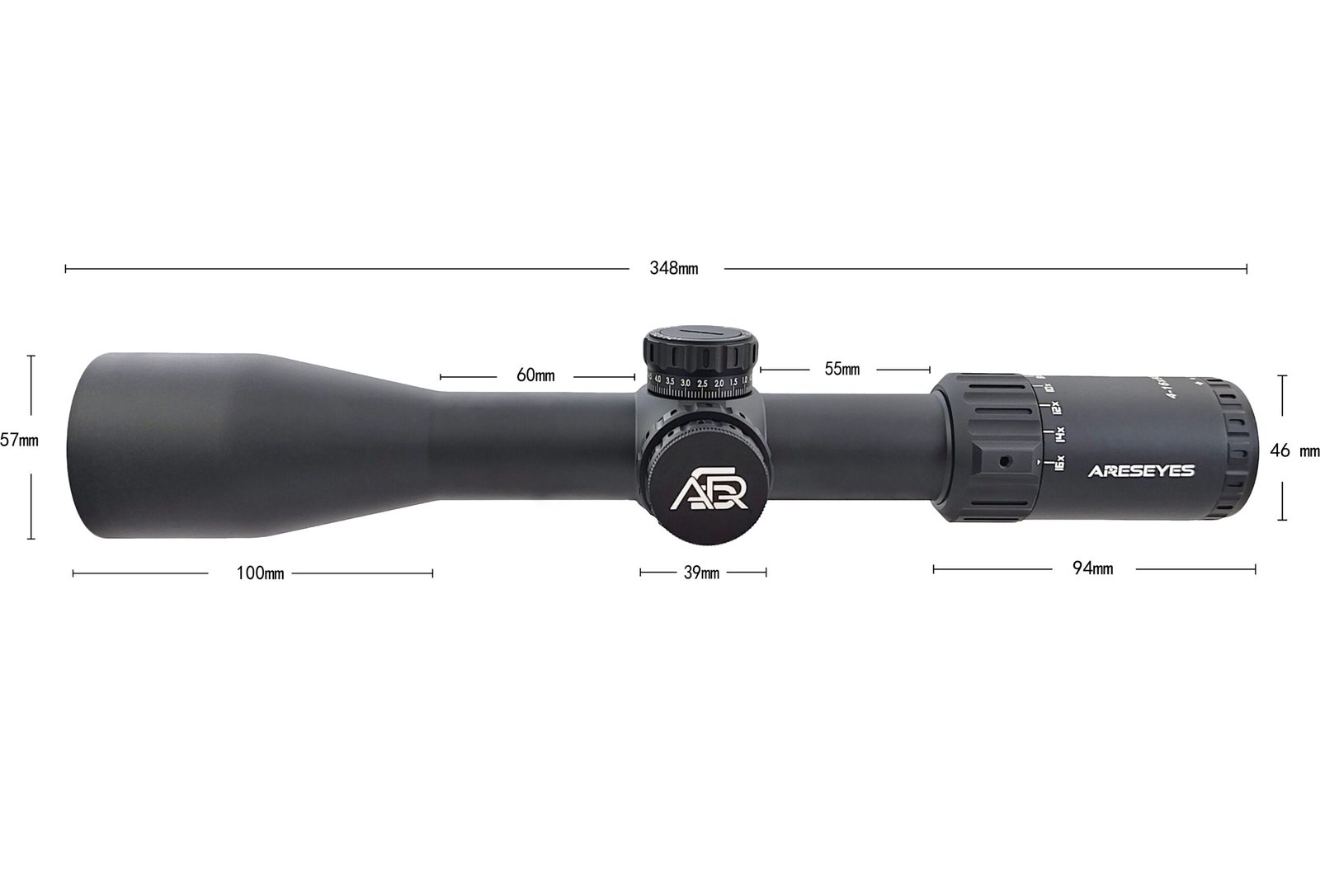

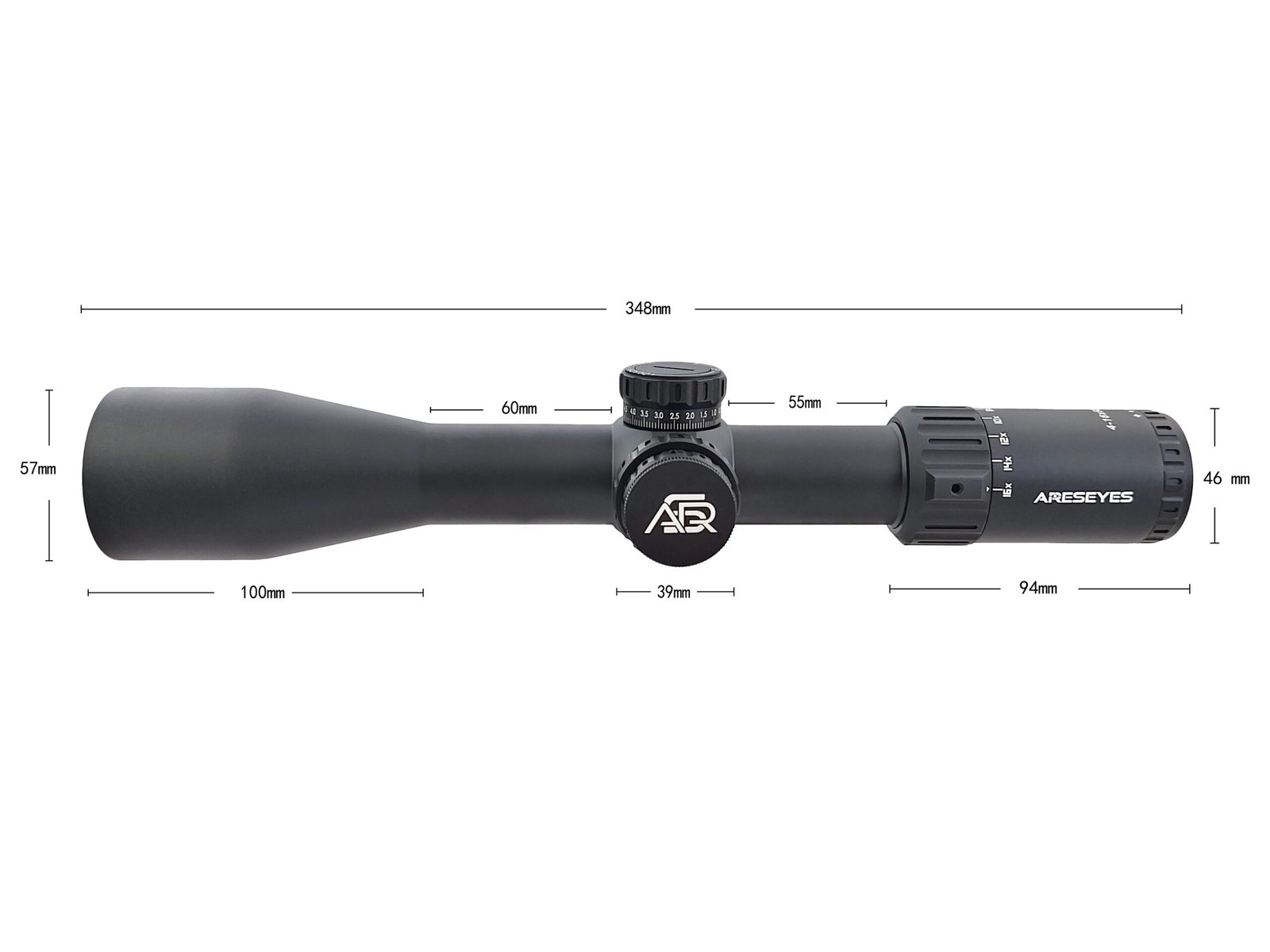

Length(mm) 315
Weight(g) 645
5 year warranty does not cover loss, theft, deliberate damage, or cosmetic damage that does not hinder the performance of the product.
